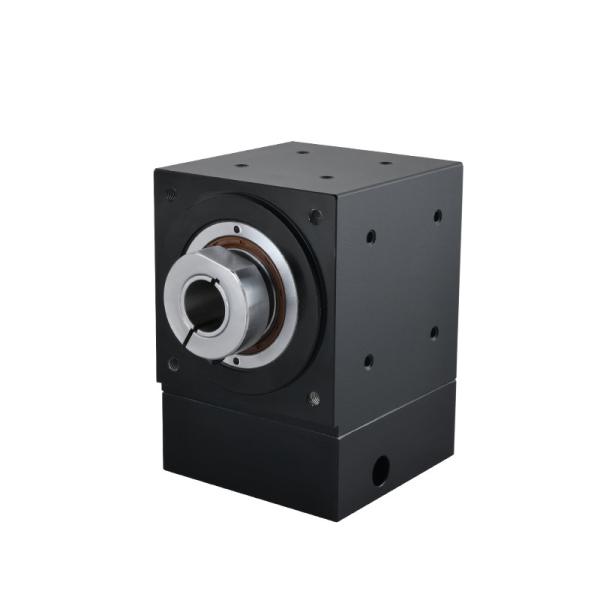

Hole Output Planetary Gearbox Angle Bevel Commutator
● High precision: CHE bevel gearboxes are highly efficient, have a low backlash and work with high gear ratio precision
● 100% Brand new and high quality
● Easy mounting: Input and output shaft flanges simplify mounting and installation
● Good material: Made of high quality aluminum material, 40cr gear material after heat treatment, durable and wear-resistant
● High performance: Low noise levels, low vibiratin, shock-resistant, highly resilient and space-saving
These are our new developed planetary gearboxes type, including more sizes and appearances
| Model | ZK60-2 | ZK90-1 | ZK90-2 | ZK110-2 |
| Gear Ratio | 2:1 | 1:1 | 2:1 | 2:1 |
| Output Method | Hole output | Hole output | Hole output | Hole output |
| Rated Torque | 25Nm | 90Nm | 78Nm | 85Nm |
| Maxmium Torque | 50Nm | 180m | 156Nm | 170Nm |
| Rated Speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
| Maxmium Speed | 5000rpm | 4500rpm | 4500rpm | 4500rpm |
| Return Clearance | ≤7arcmin | ≤7arcmin | ≤7arcmin | ≤7arcmin |
| Service Life | 20000h | 20000h | 20000h | 20000h |
| Full Load Efficency | ≥96% | ≥96% | ≥96% | ≥96% |
| Working Temperature | -20~+80℃ | -20~+80℃ | -20~+80℃ | -20~+80℃ |
| Grease | Fully synthetic grease | Fully synthetic grease | Fully synthetic grease | Fully synthetic grease |
| Noise Value | ≤65 | ≤65 | ≤65 | ≤70 |
CHE Planetary Speed Reducer Selection Instructions:
Model~if you know the specific model, that would be wonderful.
Torque:
Gear Ratio:
Reducer size or motor power:
Output method:
Connection Method:
Helical or Spur Gear:
Quantity:
What machine you use for:
Pls provide as much as you can so that we can help you more quickly!
Thanks a lot!
Working Shop
Revolutionary Technology
CHE launched the high-speed gear end of the supoort and the integration process, to achieve better concentricity requirements to meet the low noise requirements; increasing the reducer adjustment ring, adjust the internal axial clearance, ran achievement minimization; reducer output end of the tapered roller bearing load, the force to meet the greater demand and absolute stability after loading.
